MCM200D52 product brochure

• Selectable uplink data rate to suit varying wireline conditons
• Support for“Load and logging”protocol,automatic identification tool

1、Telemetry

• Transmission mode：    Half-Duplex or Full-Duplex
• Uplink data rates：    50～200Kbps,16QAM
• Downlink data rates:   600bps～5Kbps, Manchester
• Error rate:            ≤1.0E-7
• Error correcting mode：Reed-Solomom
• Transmission media ：  Monocable,≤7000m

2、Gamma Ray

• Crystal:               NaI, Φ23mm×120mm
• Measurement range:     0～1000API
• Accuracy:              ≤±5%

3、Gyro & Inclinometer

• Deviation:             ±0.5°（0～180°）
• Azimuth:               ±22.5°（0～360°）/2h

4、CCL

5、Toolbus

• Transmission mode:      Half-Duplex or Full-Duplex
• Bus Type：              CAN2.0, RS485, AMI, etc.
• Data rate:              ≤1.0Mbps
• Bit error rate:         ≤1.0E-10

6. Calbe head measurement functions

7. Specifications

• Maximum OD：            Φ38mm～Φ76mm
• Makeup length：         1100mm～1400mm
• Operating voltages:     90V～200VDC
• Temperature(Max):       175℃
• Pressure(Max):          100MPa
• Housing material:       Titanium stainless steel

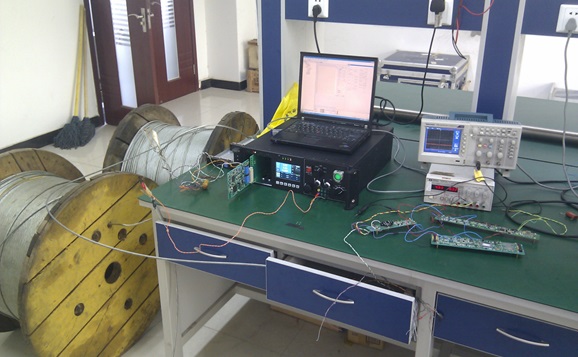

1、Real cable demo (5.6mm monocable)

2、Casing inspection: ultrasonic imaging tool
