AXP600FC product brochure

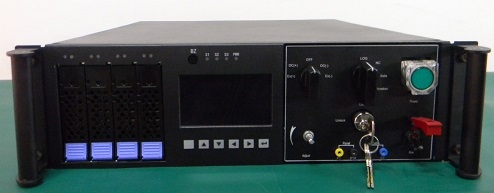

AXP600FC casedhole logging surface panel is a 3U high, 19 "rackmount panel which integrates signal acquisition, data processing , downhole tool supply, cable function switching , data transmission, winch control, front computer, perforation safety switch and other system functions. ArenaPetro has developed AXP600, AXP600A, AXP600B, AXP600C, AXP600D, AXP600E, AXP600F and other models of AXP600 series products , the latest model is AXP600FC.
AXP600FC
The AXP600FC series casedhole logging surface panel is an upgraded version of AXP600EC, this version is focused on improving performance and manufacturability.
The main upgradations are listed as follows:
l The maximum output is increased to 400W, the output voltage increased to 400V.
l The control panel uses high performance components to design, meet the API standard.
l The front computer hardware and software are upgraded and firmware bugs are solved.
l The performance of the system is greatly increased.
l S tandard interface , can quickly complete the docking with the instruments
l High performance ARM front computer, Windows CE 6 operating system , 4.3 " TFT LCD , simple user interface to realize the programmable function
l SDX2.0 bus and the board development specification
l Fully time driven , compatible with depth driven , data packets with time and depth mark .
l Two depth channel can be recorded at the same time , depth count with anti-skid , anti-shake and tension compensation function .
l 100M Ethernet connected to field computer .

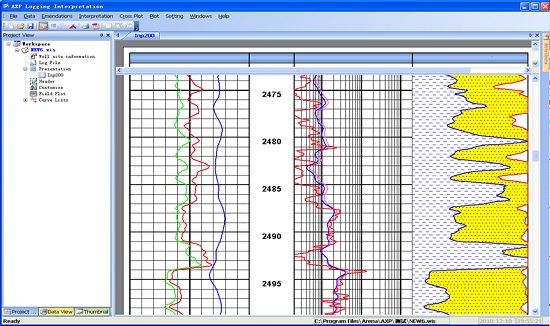

l P owerful AXP logging software and the field interpretation software
l Programmable DC power can set parameters as voltage, voltage or current protection .
l Compact structure , can be freely configured as rackmount or portable logging system .
l 3U 19 " standard chassis , -20 ℃ ~ 55 ℃ work , -40 ℃ ~ 70 ℃ storage .
l High reliable switch , connector , fan , wire and high standards of welding , assembly , testing technology .
l Varieties of data exchange formats , multi-language and multi -unit module , can meet the demand of the international market .
1. Front computer:
l Operating frequency: 400MHz ;
l Operating system : Windows CE 6 real-time operating system ;
l Storage capacity: 64MRAM+64MFlash ;
l Interface : 10/100M Ethernet ;
l Display size: 4.3 " color display ;
l Display mode: 480X272 , 64K TFT ;
2. Control panel:
l Switch: system power switch, working mode selection switch , multi-parameter adjusting knob , power mode selection switch , M anual/ Program switch;
l Jack number:8.
3. Depth system:
l Input range: 0.00V ~+5.00V LS-TTL or 4~20mA current pulse;
l Pulse frequency:≤ 10KHZ , at a speed of about 20000 m/h ;
l Input channel: 4 channels ( two photo encoder );
l Encoder equivalent:1~5000 pulses/meter;
l Depth measuring range : ± 19999.0 meters
l Preset depth range : ± 15000.000 meters
l Power off protection : the depth and the state data are automatically saved .
4. A nalog system
l Input range: -5.00V ~+5.00V
l PGA range: automatic gain control , software x1 ~ x10 gain setting;
l Signal polarity: Single/ double , single-ended /differential ;
l Resolution:12bit ;
5. Power system:
l Input voltage range: AC 85~264V;
l Working frequency: 47~63Hz;
l Output power: 400W ;
l Output voltage: DC 0~400V;
l Output current: DC 1.3A( 0V ～ 300V ) ； 1A （ 300V ～ 400V ）；
l Overvoltage protection ;
l Overcurrent protection ;
l Over temperature protection .
1. Production Log

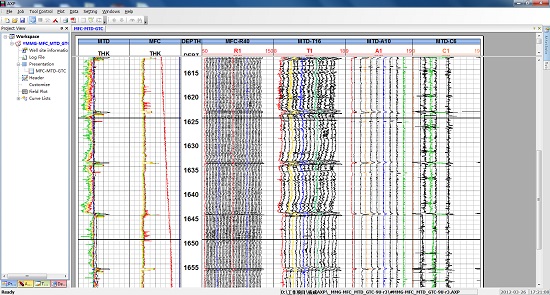

2. Multi-finger caliper Log

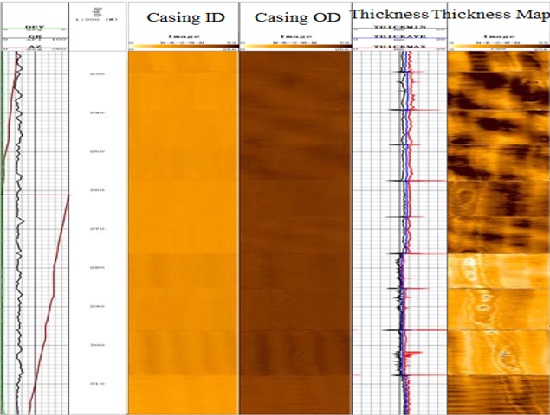

3. Ultrasonic image Log

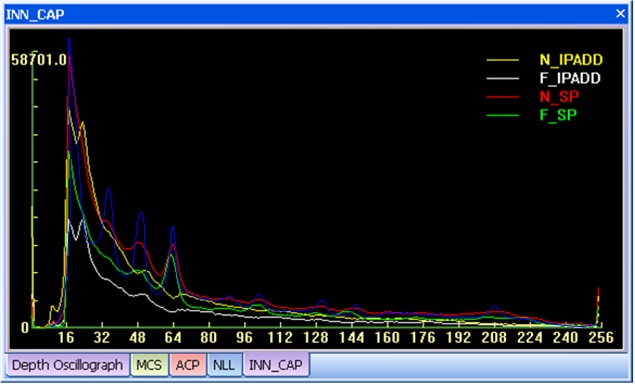

4. Pulsed neutron Log

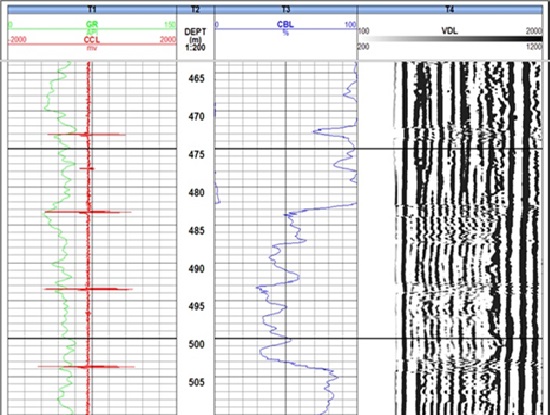

5.Cenment evaluation Log
